PAPER REELS REWINDING TO THE WIDTH 240 CM

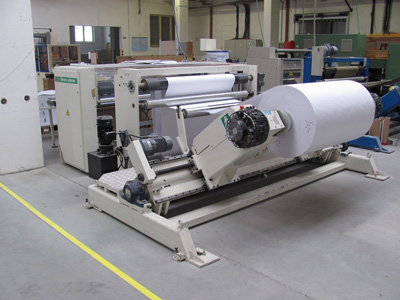

► Rewinder 1
Processing material: paper, paperboard, cardboard, plastic foil
Grammage: 40 - 300 gsm
Unwinding
Max. width capability: 1400 mm
Max. reel diameter: 1250 mm
Tube diameter: 70, 76, 100, 120, 150, 300 mm
Max. reel weight: 2500 kg
Winding
Max. width capability: 1400 mm
Max. reel diameter: 800 mm
Tube diameter: 70, 76 mm
Number of cuts: 14
Grammage: 40 - 300 gsm
Unwinding
Max. width capability: 1400 mm
Max. reel diameter: 1250 mm
Tube diameter: 70, 76, 100, 120, 150, 300 mm
Max. reel weight: 2500 kg
Winding
Max. width capability: 1400 mm
Max. reel diameter: 800 mm
Tube diameter: 70, 76 mm
Number of cuts: 14
► Rewinder 2
Processing material: paper, paperboard, cardboard
Grammage: 20 - 400 gsm
Unwinding
Max. width capability: 2400 mm
Max. reel diameter: 1600 mm
Tube diameter: 70, 76, 100, 120, 150, 300 mm
Max. reel weight: 3500 kg
Winding
Max. width capability: 2300 mm
Max. reel diameter: 1600 mm
Tube diameter: 70, 76, 120, 150 mm
Number of cuts: 5
Grammage: 20 - 400 gsm
Unwinding
Max. width capability: 2400 mm
Max. reel diameter: 1600 mm
Tube diameter: 70, 76, 100, 120, 150, 300 mm
Max. reel weight: 3500 kg
Winding
Max. width capability: 2300 mm
Max. reel diameter: 1600 mm
Tube diameter: 70, 76, 120, 150 mm
Number of cuts: 5
PAPER REELS PACKING
► semi-automatic packing machine
Width of paper reel: 200 - 2100 mm
Reel diameter: 460 - 1800 mm
Reel diameter: 460 - 1800 mm
SMALL SHEETS CUTTING FROM PAPER REELS
► paper cutting machine
Processing material: paper, paperboard, cardboard
Grammage: 20 - 400 gsm
Paper sizes
Length: 275 - 800 mm
&Width up to: 1090 mm
Unwinding
Max. width capability: 1140 mm
Max. reel weight: 1000 kg
Tube diameter: 70, 76, 150 mm
Number of unwinding stands: 4
Grammage: 20 - 400 gsm
Paper sizes
Length: 275 - 800 mm
&Width up to: 1090 mm
Unwinding
Max. width capability: 1140 mm
Max. reel weight: 1000 kg
Tube diameter: 70, 76, 150 mm
Number of unwinding stands: 4
SMALL SHEETS PACKING
► semi-automatic packing machine of small sheets
Wrapping material:
- paper coated with PE: 70-85gsm + 15-18gsm PE
- Paper without coated PE: 80 - 100 gsm
Packing formats
Min.: 176 x 250 mm
Max.: 320 x 450 mm
Package height: 30-80 mm
Max. width of wrapping paper: 600 mm
Glue: hotmelt
- paper coated with PE: 70-85gsm + 15-18gsm PE
- Paper without coated PE: 80 - 100 gsm
Packing formats
Min.: 176 x 250 mm
Max.: 320 x 450 mm
Package height: 30-80 mm
Max. width of wrapping paper: 600 mm
Glue: hotmelt
LARGE SHEETS CUTTING FROM PAPER REELS

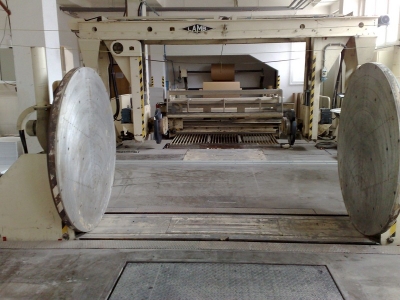

► sheeter 2
Processing material: paper, paperboard, cardboard
Grammage: 40 - 600 gsm
Paper sizes
Length: 450 - 1850 mm
Width up to: 1520 mm
Unwinding
Width up to: 1520 mm
Max. reell weight: 2000 kg
Tube diameter: 70, 76, 120, 150, 300 mm
Number of unwinding stands: 4
Grammage: 40 - 600 gsm
Paper sizes
Length: 450 - 1850 mm
Width up to: 1520 mm
Unwinding
Width up to: 1520 mm
Max. reell weight: 2000 kg
Tube diameter: 70, 76, 120, 150, 300 mm
Number of unwinding stands: 4
► sheeter 3 and 4
Processing material: paper, paperboard, cardboard
Grammage: 70 - 500 gsm
Paper sizes
Length: 150 mm - unlimited (e.g. 2500 - 3000 mm)
Width up to: 1600 mm
Unwinding
Width up to: 1600 mm
Max. reell weight: 2500 kg
Tube diameter: 70, 76, 120, 150, 300 mm
Number of unwinding stands: 1
Grammage: 70 - 500 gsm
Paper sizes
Length: 150 mm - unlimited (e.g. 2500 - 3000 mm)
Width up to: 1600 mm
Unwinding
Width up to: 1600 mm
Max. reell weight: 2500 kg
Tube diameter: 70, 76, 120, 150, 300 mm
Number of unwinding stands: 1
PRODUCTS FROM PAPER AND CARDBOARD
► sizing sheets with paper cutter guillotine
Reducing size sheets
Cutting the sheets across a larger number of smaller formats
Cutting the sheets across a larger number of smaller formats
► cutting out formats up to 70x100 cm
Small series production of paper boxes and paper boards
► stitching by wire staples
Sewing paper boxes of cardboard
► ripping holes up to paper folders
Ripping holes into binders and flip-charts
► longitudinal cutting and scoring
Manufacture of protective corners of pallets
► A4 paper size collating
Completion paper folders from different sheets
► tightening by paper tape
Packing receipts and note lists
► packaging into plastic foil
Packaging of products for sale
Protection of products against damage
Protection of products against damage
► gluing blocks of paper
Gluing blocks of paper, paper foldres,carbonless papers etc.
SHRING WRAPPING
Shrink wrap protects retail products against damage. Shrink wrap is only available for items that are no greater than A3 paper size. Type of shrink wrap is chosen according to the size and weight of the packing product.
